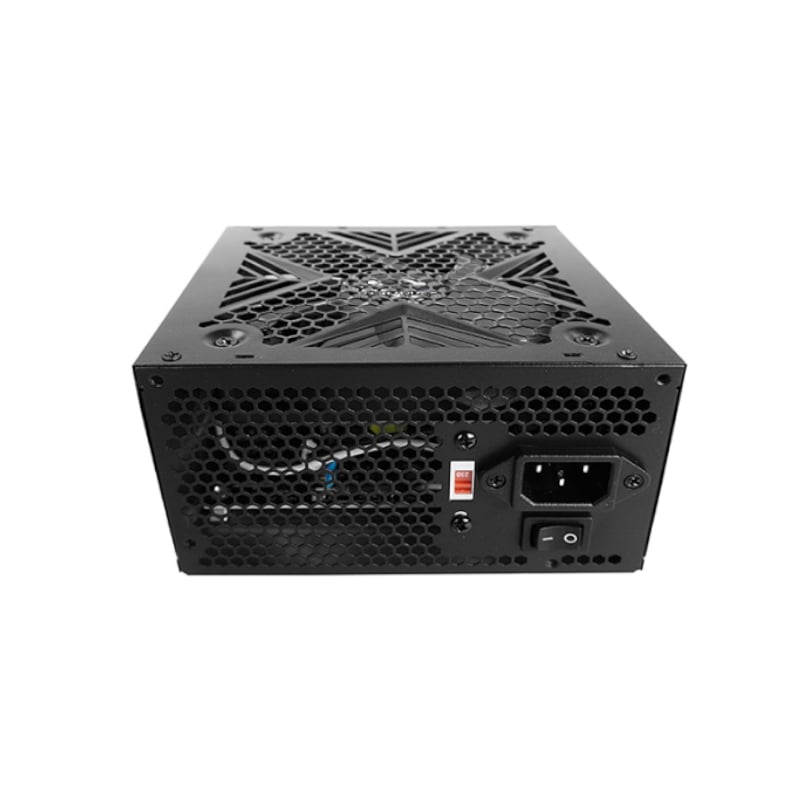

Raidmax Rx-550xt Xt-series 550w Non-modular Power Supply

p The Raidmax XT-Series 550W Non-Modular PSU is a great entry-level power supply. It utilises a single 12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies namely Over Voltage Protection OVP Over Power Protection OPP and Short Circuit Protection SCP . Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status. p h3 FEATURES h3 ul li Single 12V rail output for higher power usage li li C6 C7 power-saving mode on Intel Haswell CPU li li Supports Intel ATX12V V2.3 li li Up to four SATA connectors for multiple HDDs SSDs li li Over Voltage Protection OVP li li Over Power Protection OPP li li Short Circuit Protection SCP li li Honeycomb ventilation design for optimal heat dissipation li li Superior cooling performance with a Raidmax silent 120mm fan li ul h3 SPECIFICATIONS h3 ul li Total Power 550W li li AC Input 115 230VAC 4 8A 50 60Hz li li DC Output Voltage ul li 3.3V 18A-110W li li 5V 17A-110w li li 12V 38A-456W li li -12V 0.5A-6W li li 5VSB 2.5A-12.5W li ul li li Connectors ul li M B 20 4 PINS 1 li li CPU 4 4 PINS 1 li li PCI-E 6 2 PINS 1 li li PCI-E 6 PINS 1 li li SATA 4 li li Molex 4 PINS 2 li ul li li Protective Features OVP OPP SCP li li Dimensions 15 x 14 x 8.6 cm li ul h3 What’s In The Box h3 ul li Raidmax XT-Series 550W Non-Modular PSU Black x1 li ul
