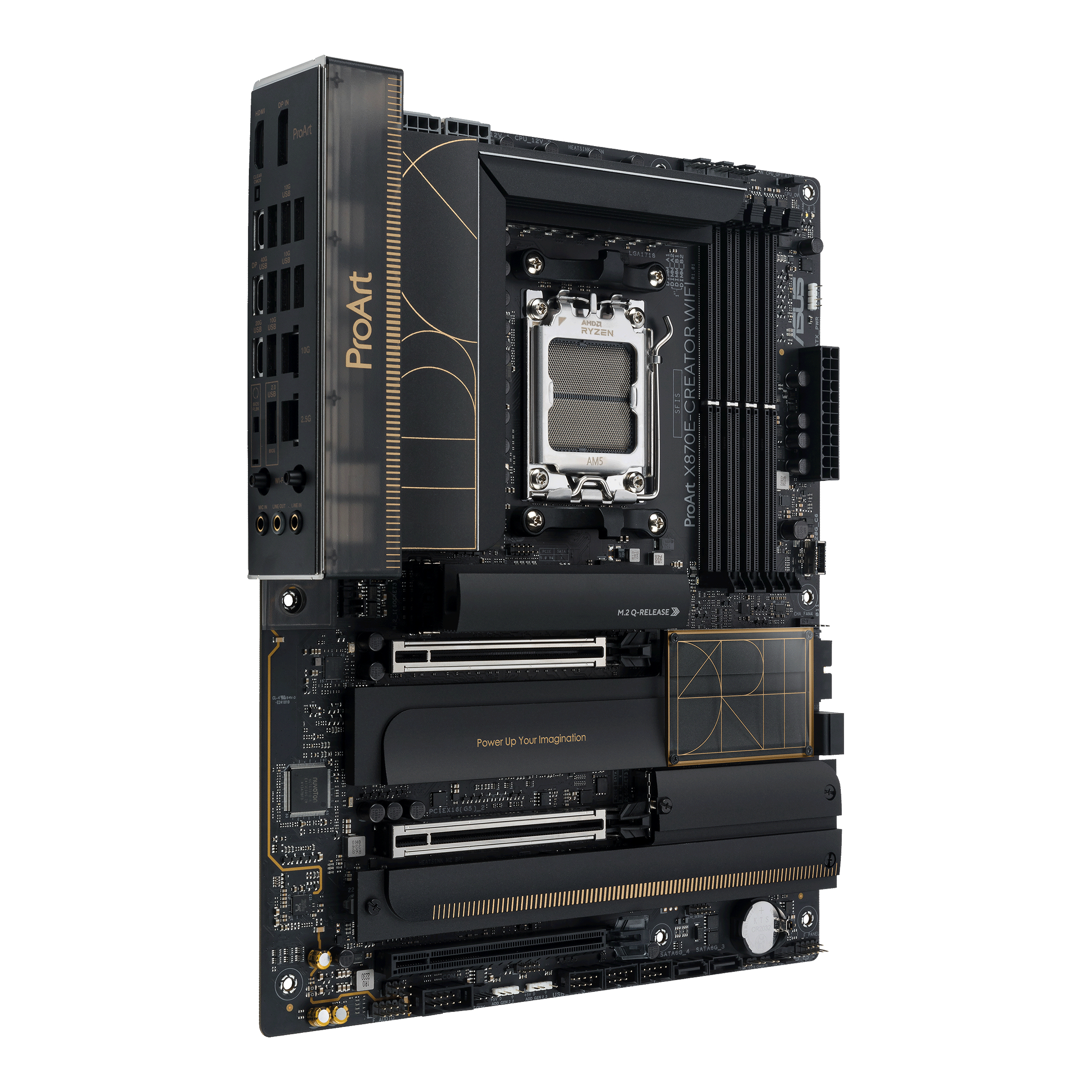

ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Memory | |
| Maximum internal memory | 192 GB |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Processor | |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |

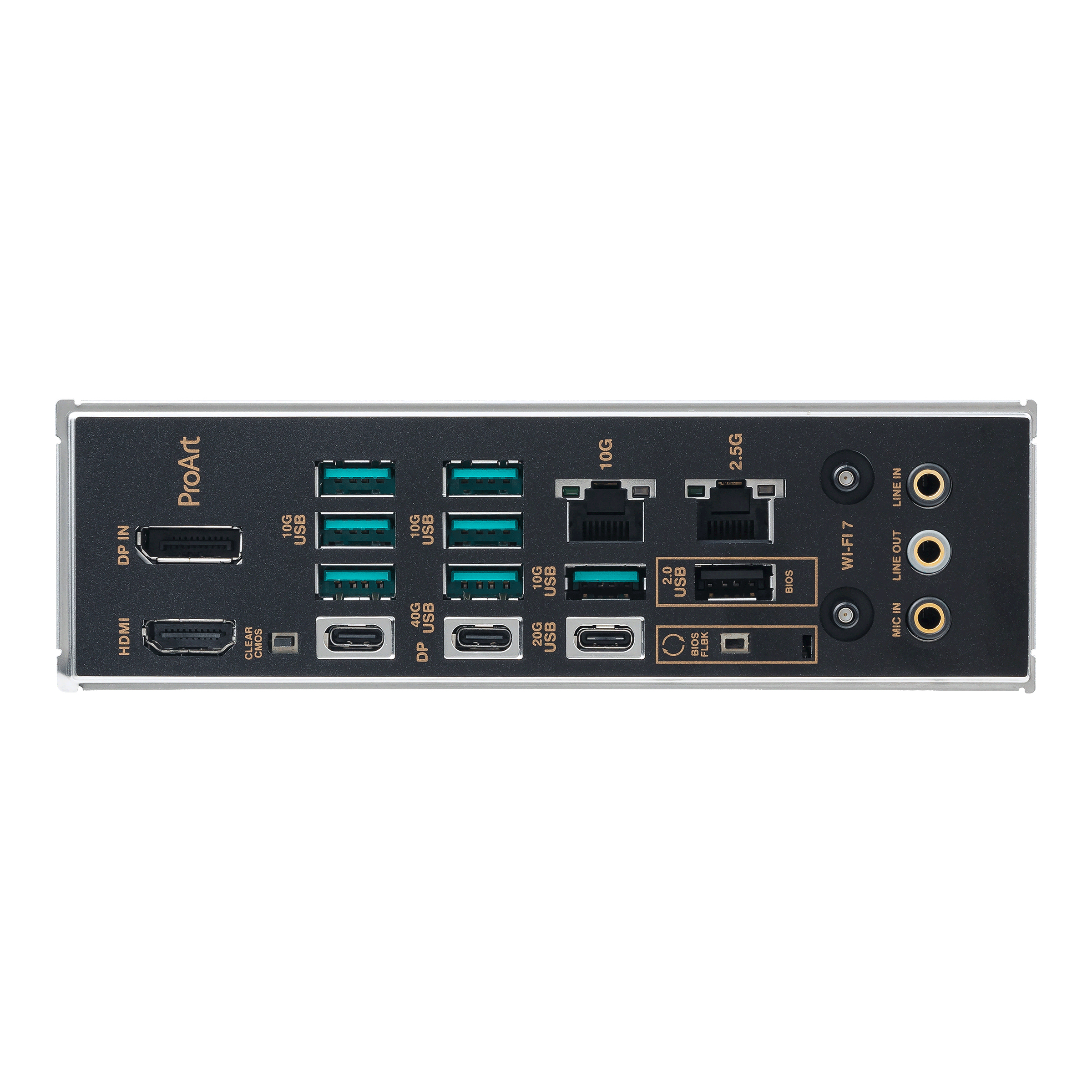

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| WiFi-AP antenna jack | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| USB4 Gen 2×2 ports quantity | 2 |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| USB 3.2 Gen 2×2 connectors | 1 |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Packaging content | |
| Cables included | DisplayPort, SATA |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD X870E |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Component for | PC |
| Windows operating systems supported | Windows 11 |
| Audio chip | Realtek S1220A |
| Storage controllers | |
| RAID levels | 0, 1, 10, 5 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| RAID support | Yes |
